SGS Chip Tray Waffle Pack For Optical Device Packaging 0.2mm Flatness

A semiconductor packing material is a material whose ability to conduct electricity is intermediate between a conductor and an insulator. It is a kind of electronic material with semiconductor properties, which can be used to make semiconductor devices and integrated electricity. Its conductivity is in the range of 10 (U-3) ~ 10 (U-9) ohm/cm. In some cases, a semiconductor has the property of conducting electricity.

Waffle Pack is a form of packaging designed for use with parts that are either very small or unusual in shape. Waffle pack are embossed or pocketed trays, typically made of plastic, that resemble a breakfast waffle (hence the name). The waffle packs are loaded using pick and place equipment so that the "inside" of each pocket contains a part or component. Once loaded - the parts are covered with anti-static paper, and then a foam-covered crown holds the parts in place, and finally, a lid secures the waffle package together.

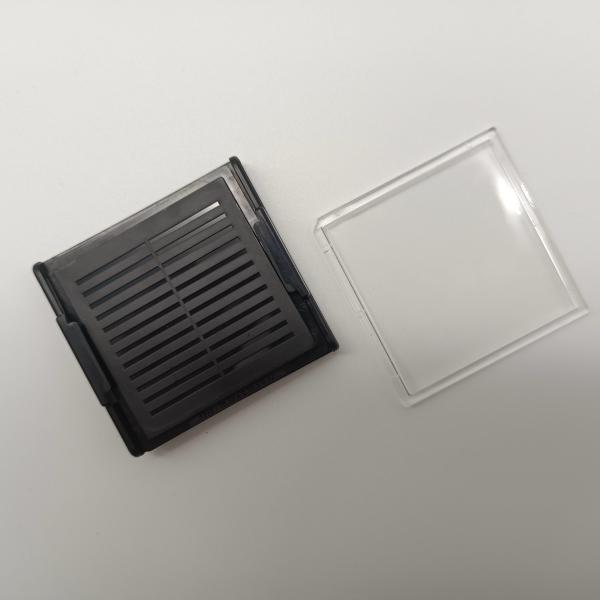

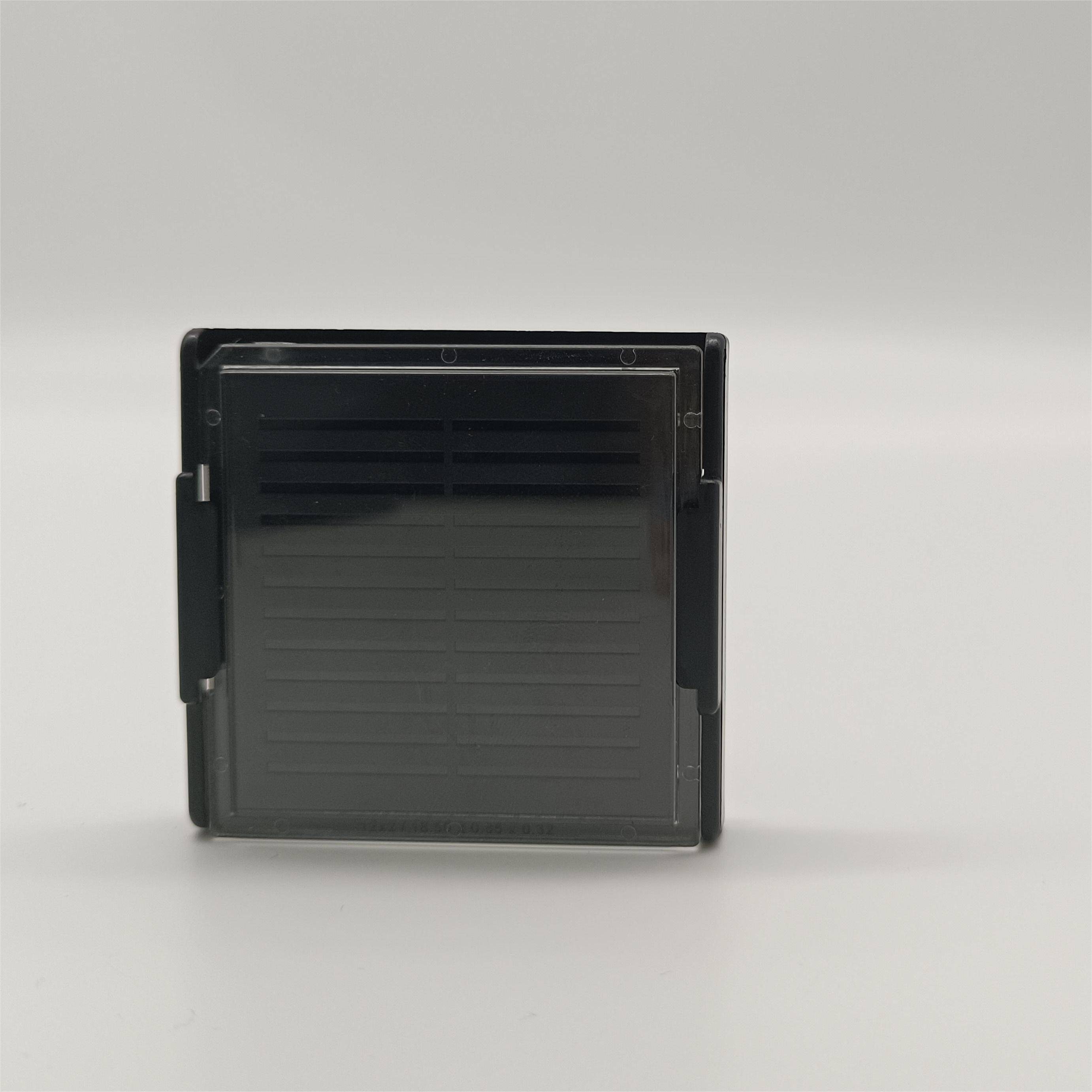

Details about HN21082 Customized PC 4 Inch Waffle Pack

PC is a kind of amorphous thermoplastic resin with excellent comprehensive performance, which makes the HN21082 waffle pack excellent electrical insulation, elongation, dimensional stability and chemical corrosion resistance. At the same time with self-extinguishing, flame retardant, non-toxic, coloring and other advantages to ensure the safety of customers' products.

Application Of Waffle Pack

Semiconductor Electronic component factories
SMT Surfacing factories Optical industry

Advantages

1. Light weight, saving transportation and packaging costs
2. Size specification, compatible in any 2 ", 3 "or 4" Waffle Pack Feeder Machine
3. Good anti-static performance, effectively ensure that the product is not damaged by anti-static release
4. High temperature resistance, suitable for high temperature automation equipment assembly
5. Corrosion resistance, suitable for all kinds of production conditions of products
6. Matrix arrangement design, under the premise of protecting the product, the maximum capacity design, cost saving
7. Edge chamfer design, effectively prevent stacking error, correct the direction of placement

FAQ

Q1: Are You Manufacturer or Trade Company?

A:We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.

Q2: What is the material of your product?

A:ABS.PC.PPE.MPPO.PEI.HIPS...etc

Q3: Can you help with the design?

A:Yes, we can accept your customization and do the packaging for you according to your requirement.

Q4: How can I get the quotation of the custom products ?

A:Let us know the size of your IC or component thickness,and then we can make a quotation for you.

Q5: Can I get some samples before making a bulk order?

A:Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.

Q6: Could you put my logo in our product?

A:Yes, we can put your logo in our product, show us your logo firstly please.

Q7: When can we get the samples?

A:We can send you them right now if you are interested in something we have stock, and

the project depending on the specific time.

Hiner-pack was founded in 2013, it is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Hiner-pack has established a depth of cooperation with well-known enterprises and built a polymer material R&D base with domestic well-known universities as well as scientific research institutions. Hiner-pack has mastered special processing techniques and manufacturing in the semiconductor packaging raw material field. Owned a lot of inventions and practical new patents. Through years of unremitting efforts, Hiner-pack has a professional R&D team to improve semiconductor packaging products, new products continue to be launched, and to solve the customer demand for high-quality products.
