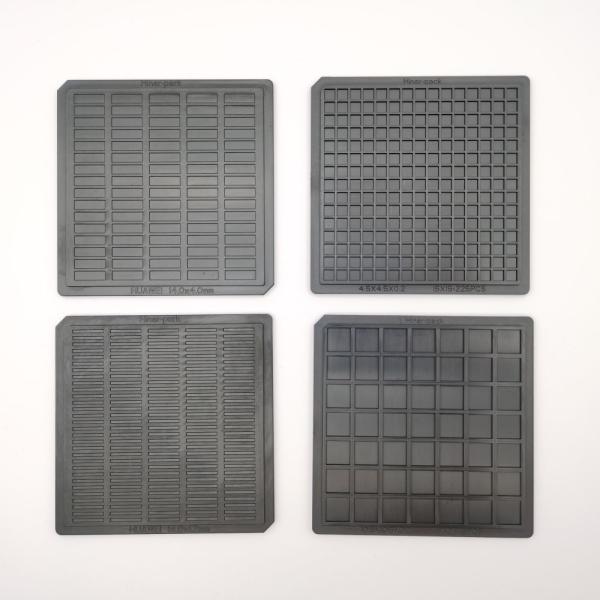

Customized Reusable Waffle Pack Chip Trays MPPO For Wafer Die

Looking for reliable IC packaging solutions? Discover our anti-static JEDEC trays tailored to your specific semiconductor designs.

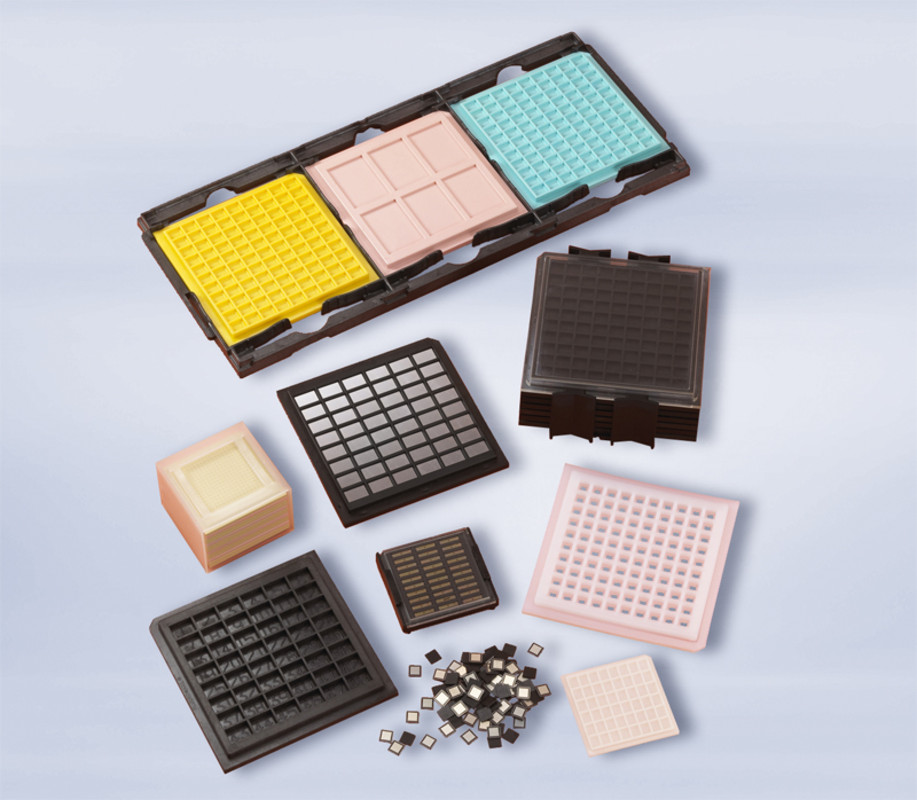

Silicon dies can be delivered in a tray, which is also known as a waffle pack – a plastic tray with pockets that match the die size. A waffle pack has a lid and is delivered in an antistatic bag. Waffle packs are ideal for delivering a small number of silicon dies, typically from an MPW process.

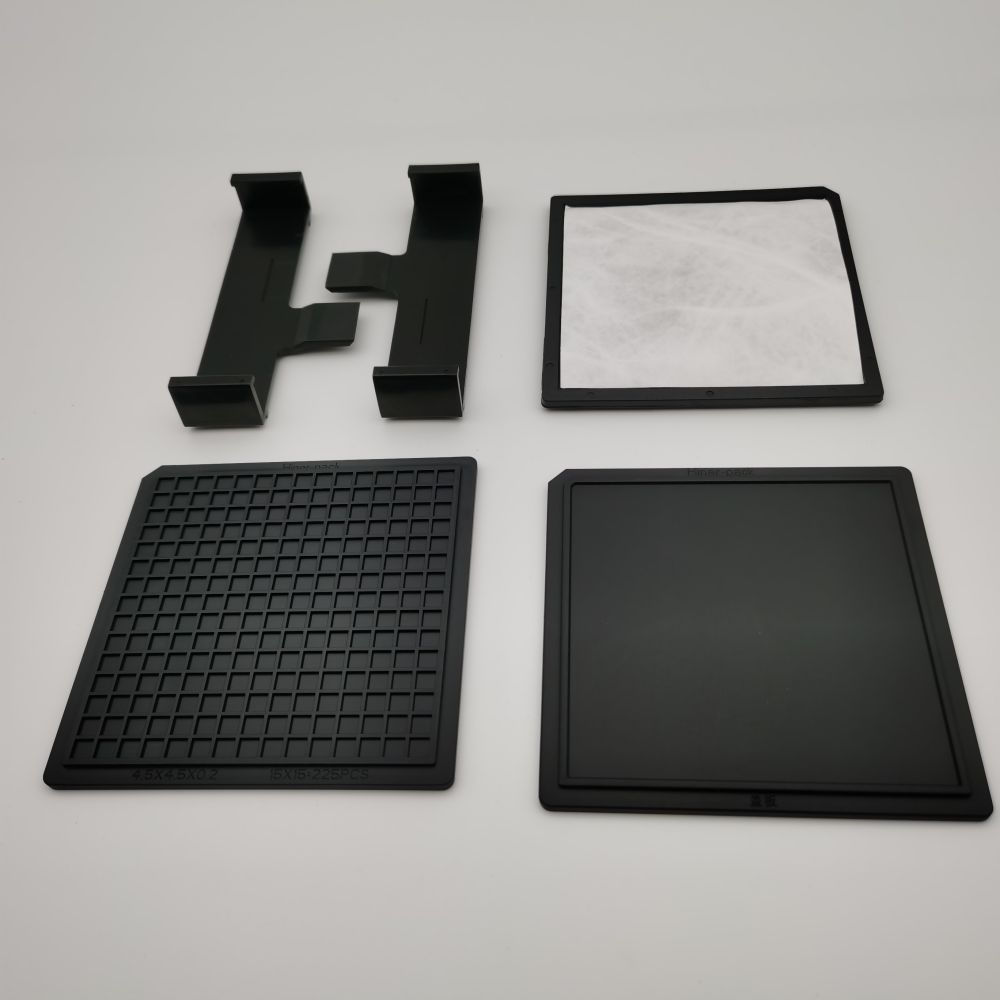

Waffle Pack is a form of packaging designed for use with parts that are either very small or unusual in shape. Waffle pack are embossed or pocketed trays, typically made of plastic, that resemble a breakfast waffle (hence the name). The waffle packs are loaded using pick and place equipment so that the "inside" of each pocket contains a part or component. Once loaded, the parts are covered with anti-static paper, and then a foam-covered crown holds the parts in place, and finally, a lid secures the waffle package together.

As the tray in the field of optical application, more and more customers in order to protect components or optical devices, are willing to choose injection molding tray for packaging solution, because the tray can carrier component also provides comprehensive protection to transit and transport provides great convenience, all kinds of specifications and various color can be realized, Provide one-stop service from design to production to packaging.

Application:

Wafer Die / Bar / Chips and PCBA module component
Electronic component packaging, optical device packaging

Advantages:

1. More than 12 years of export experience.

2. With professional engineers and efficient management.

3. Short delivery time and good quality.

4. Support small batch production in the first batch.

5. Professional sales within 24 hours efficient reply.

6. The factory has ISO certification, and the products comply with the RoHS standard.

7. Our products are exported to the United States, Germany, the UK, Korea, Japan, Israel, Malaysia, etc. won the praise of many customers, with service and cost performance being well recognized.
